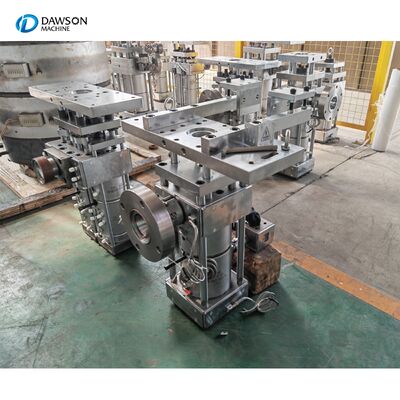

Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface

$4,000/sets 1-2 sets
цена
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Видео выездной осмотр: Предоставил
Отчет об испытаниях оборудования: Нет в наличии
Основные компоненты: бегун
Пластик Обработанный: ПП, ПЭВП, ПК, АБС, ПВХ, ПЭ, АБС/ПП, ПЭ/ПП, ПЭВП/ПП
Место происхождения: Цзянсу, Китай
brand name: DAWSON
Напряжение: 380 В/50 Гц
Размер(л*ш*ч): 900*500*1200ММ
Усилие зажима (кН): Никто
бренд ПЛС: Нет
Соотношение L/D винта: 25
Диаметр винта (мм): 55 mm
производительность (кг/ч): 60 кг/ч
Автоматизация: Автоматический
Количество винтовых зон нагрева: 4
Мощность нагрева винта (кВт): 5 кВт
Мощность двигателя экструдера (кВт): 15 кВт
Размер пресс-формы (ширина) (мм): 290 мм
Размер пресс-формы (высота) (мм): 320 мм
Давление воздуха (МПа): 0,8 МПа
расход воздуха(м³/мин): 0,4 мграни/мин
Мощность нагрева головки (кВт): 5 кВт
Мощность (кВт): 35
вес (т): 0,5
ключевые точки продажи: Длительный срок службы
Гарантия: 1 год
Материал: 42КрМо
Программное обеспечение для проектирования: Про--E
Приложение: Выдувная машина
Номер головы: 1/2/3/4/6/8/10/12
Расстояние между центрами головки штампа: согласно образцу
Пластиковый материал: HDPE/PP/PVC/ABS/LDPE
Название продукта: Умирать головой
Умереть головой жизнь: мин 8 лет
Умирает поверхностное покрытие: Зеркальный лак
Состояние: Новый
Гарантия на основные компоненты: 1 год
Применимые отрасли: Машиностроительные цеха, производственные предприятия, фабрики пищевых продуктов и напитков
Расположение выставочного зала: Мексика, Колумбия, Южная Африка
Год: 2023 год
Неубедительный том части: 2л
Емкость аккумулятора (л): 0 л
Выделить:

Monolayer Continuous Type Die Head

,

Max 2L HDPE Bottles Die Head

,

Mirror Polish Surface Blow Molding Die Head
Основная информация
Сертификация: CE
Оплата и доставка Условия
Характер продукции
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 0
Products Description


DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine Die Head
Die head, is a very important part of extrusion blow molding machine. From the die head, the melted resin come out as a tubular parison. Thought the die head, we can adjust the thickness of the parison for different products. The mould pick up the parison come out from the die heads, then forming to be the finished products.
There are not only one division for the die head. If we divide by processing method, there are continuous type die head and
accumulator type die head.
If we divide based on head numbers, then there are single die head and multi die head, we have 2/3/4/6/8/10/12 heads for different product application. And we also can divide the die heads by layer number, there are die head for monolayer and die head for multi-layer.
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 1
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 2
Technical Parameters
Type of die head by processing method
continuous type die head, accumulator type
Type of die head by head numbers
1/2/3/4/6/8/10/12
Type of die head by layer numbers
1/2/3/4
Center distance
Multi heads die head, center distance can be customized
Material suitable
HDPE/LDPE/PP/PVC/EVOH/TPU/TPV/ABS/Tritan/PPSU, etc.
Material of die head
42CrMo steel
Application
Extrusion blow molding for plastic bottles, jerry cans, drums, IBC tanks, toys, table sheets, chairs, floaters, traffic barriers, etc.
Details Images
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 3
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 4
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 5
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 6
Photos Reference
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 7
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 8
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 9
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 10
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 11
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 12
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 13
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 14
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 15
Professional Workshop
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 16
Company Profile


DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 17

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 18
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 19
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 20
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 21
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 22
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 23
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 24
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 25
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 26
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 27
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 28
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 29
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 30
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 31
Our Service
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 32
Monolayer Continuous Type Extrusion Blow Molding Machine Die Head for Max 2L HDPE Bottles with Mirror Polish Surface 33
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
