Full Automatic Wadding Machine

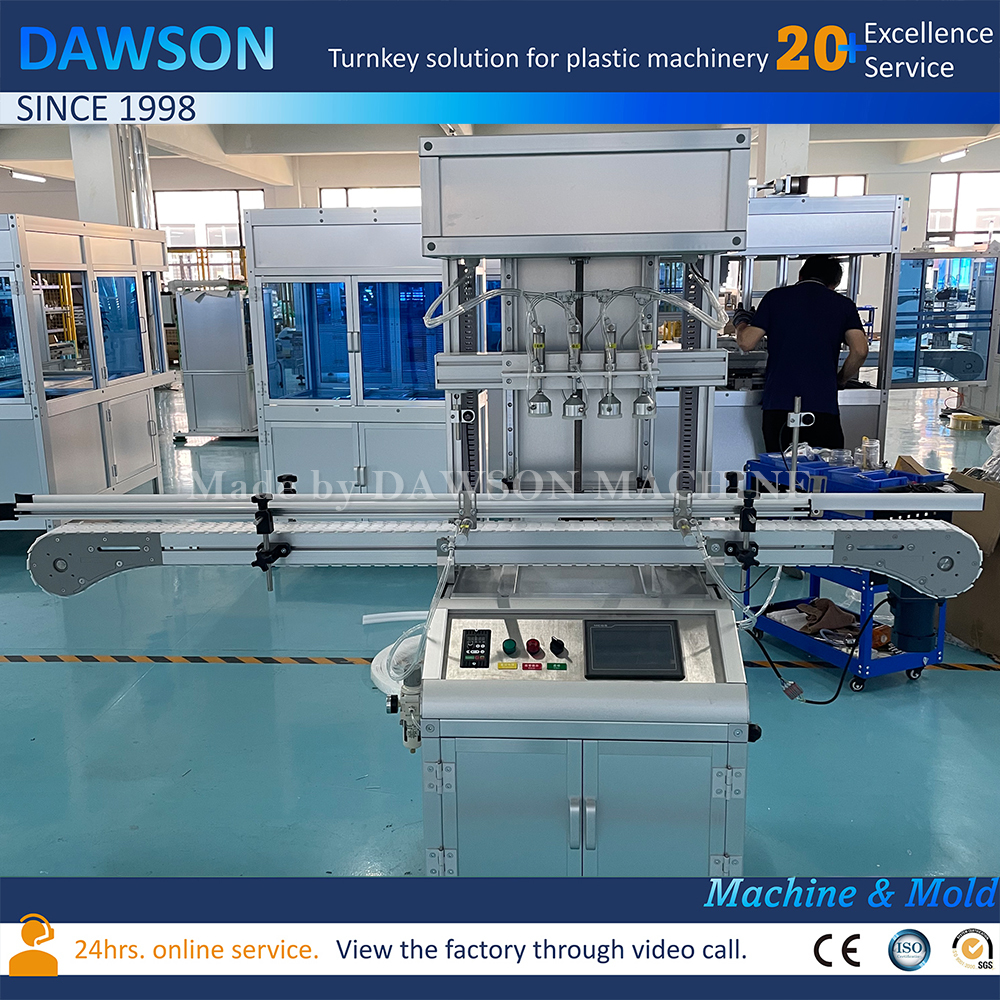

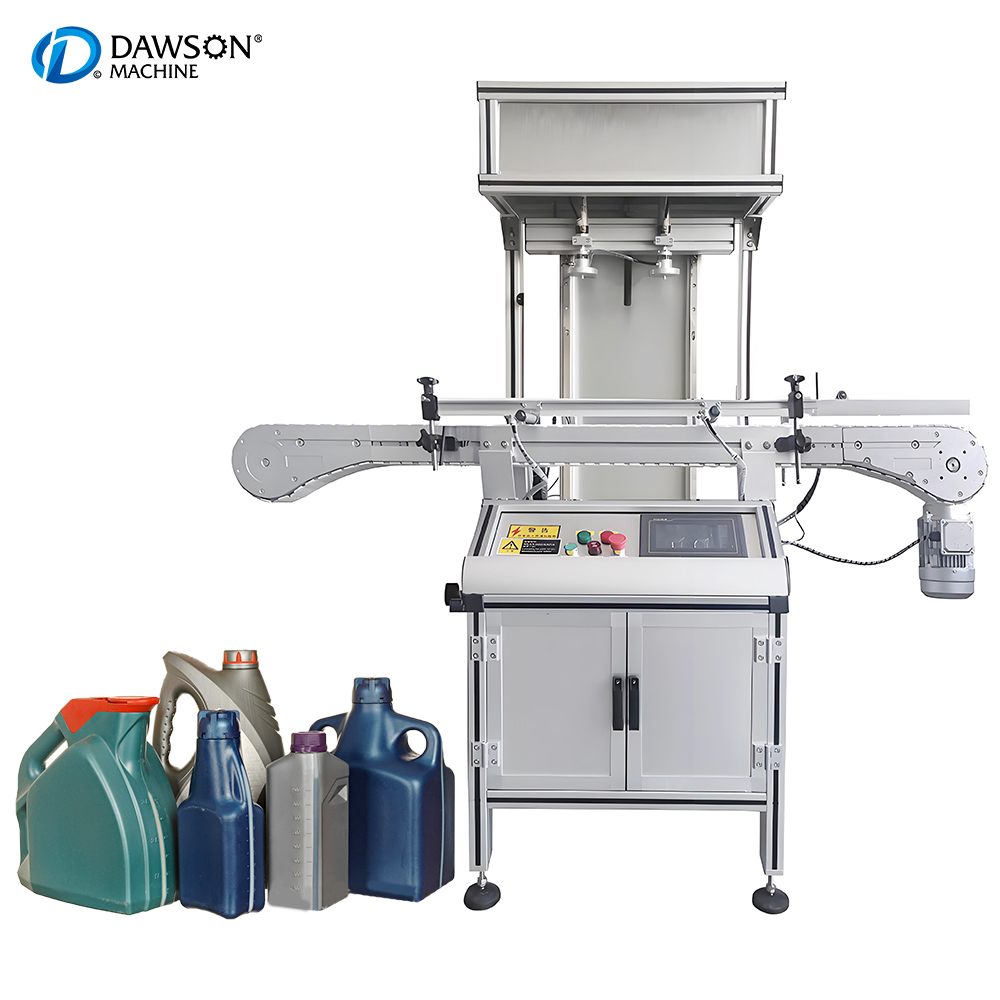

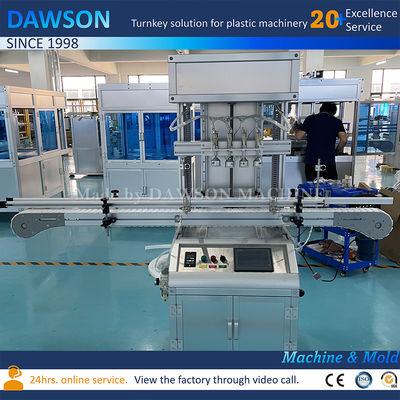

The automatic leak detector is used for 200ml to 300L plastic bottles, barrels, Jerry can, etc. Automatic Leak tester can automatically test the sealing degree of bottle mouth to ensure product quality, and is connected to the production line,bottle made by blow molding machine will automatically through the conveyor to leak tester and to the packaging machine.
| Model | D-LT1 | D-LT2 | D-LT3 | D-LT4 |
| Location mumber | 1 | 2 | 4 | 8 |
| Speed | 600-1000pcs/h | 800-1500pcs/h | 2000-3000pcs/h | 2500-4000pcs/h |
| Range | 1ml-50L | 1ml-30L | 1ml-30L | 10ml-2L |
| Size | 1600*620*1600mm | 1600*620*1600mm | 2000*750*1800mm | 2000*750*1800mm |
| Height | 800-1100mm | 800-1100mm | 800-1100mm | 800-1100mm |
| Conveyor length | 1600mm | 1600mm | 2000mm | 2000mm |
| Power | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Model | D-HLT(Series) | D-LN3/10 | D-BLT(Series) |
| Speed | 2000-3600pcs/h | 6000-10000pcs/h | 400-500pcs/h |
| Range | 10ml-200ml | 10ml-10L | 50L-200L |
| Size | 2000*620*1600mm | customize | 1600*1350*1600mm |
| Height | 800-1100mm | customize | By order |
| Conveyor length | 2000mm/OEM | customize | / |
| Power | 220V 50HZ | 220V 50HZ | 220V 50HZ |
Superior quality jerrycan leak tester empty bottle leak testing machine produces high-performance plastic container divulging check-out facility. Regardless of you are measuring, from 1ml to 3000 liter each kind of blowing hollow plastic container. No matter that is the soft bag, the grotesque anthropomorphous bottle or the tube, we can provide the ideal leak testing equipment.
Automation Equipment Inteligence Replaces Labor, Saves Cost!

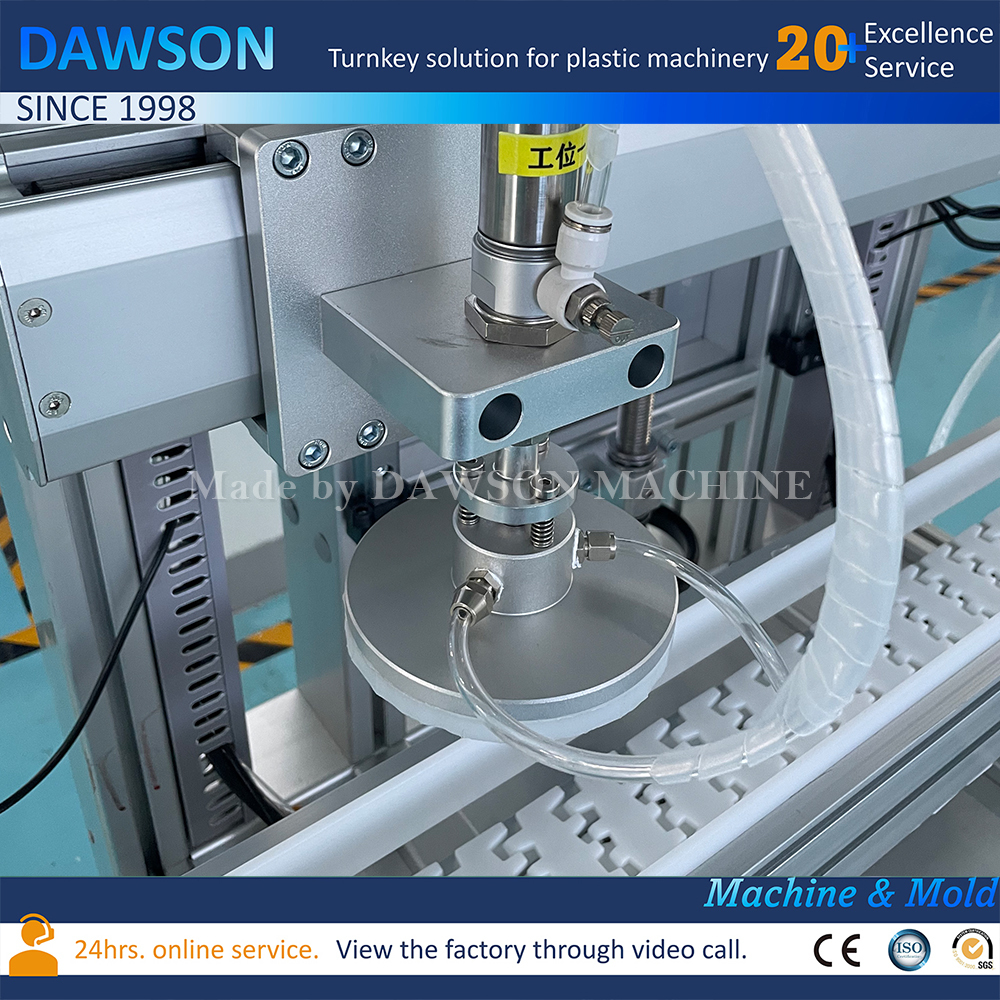

High leak detection accuracy and fast speed: high precision digital pressure sensing is adopted, and the index error is pressure leak detection and laser probe.
